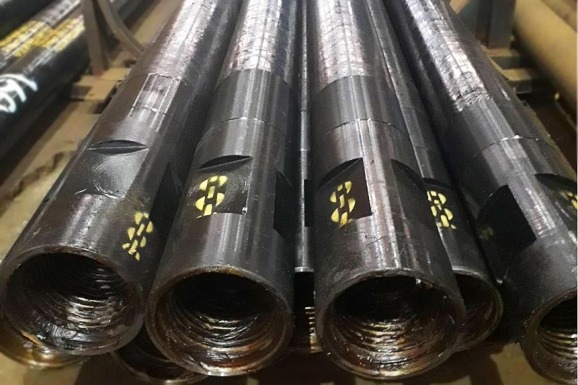

086-55.71.0000 drill rod SBSh (СБШ)
Drill rod for drill rig SBSh-250 (СБШ-250) perf. to 22.
Technical specifications
|
Sleeve material |
pipe 203х22 GOST (ГОСТ)8732/Б45 GOST (ГОСТ)8731 |
|
Rod length |
8000 |
|
Size for tool, mm |
170х75 |
|
Thread |
Special tool-joint thread 3 1:6 thread pitch 6,66 mm |
Components for drill rods are supplied both in package therewith and separately, as well.
Spare part list
|
Designation |
Name |
Material |
Length |
Weight, kg |
thread |
|---|---|---|---|---|---|
|
041-55.71.1120 |
Pipe |
P. 203х22, St 45 |
7510 |
670 |
pipe, pitch 3,175 |
|
086-55.71.1110 |
Nipple |
P. 203х50, St 45 |
395 |
43,5 |
|
|
041-55.71.1130 |
Coupling |
P. 203х50, St 45 |
295 |
35 |
|
|
041-55.08.1170 |
Adapter |
P. 203х50, St 45 |
360 |
41 |
tool-joint 3-147 |
|
086-79.00.1110 |
Adapter (bulb) |
St 45 |
250 |
28,7 |
tool-joint 3-121 |
|
086-79.00.1120 |
Adapter (bulb) |
P. 203х50, St 45 |
310 |
28,6 |
tool-joint 3-152 |
