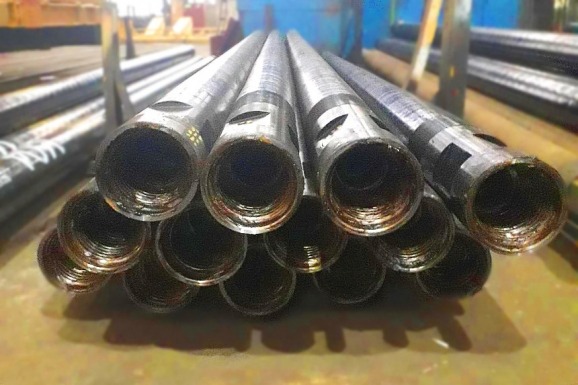

091-00.71.0000 drill rod SBSh (СБШ)
Drill rod for drill rig SBSh-250 (СБШ-250)
Technical specifications
|
Sleeve material |
pipe 203х38 GOST (ГОСТ)8732/Б45 GOST (ГОСТ)8731 |
|
Rod length |
8000 |
|
Size for tool, mm |
170х75 |
|
Thread |
Sp. 167х10х1:6 |
Components for drill rods are supplied both in package therewith and separately, as well.
Spare part list
|
Designation |
Name |
Material |
Length |
Weight, kg |
thread |
|---|---|---|---|---|---|
|
091-00.71.1000 |
Coupling |
P.203х50, St45 |
340 |
35 |
|
|
091-00.71.1001 |
Sleeve |
P.203х38,St45 |
7520 |
1144 |
|
|
091-00.71.1002 |
Nipple |
P.203х50, St45 |
380 |
40 |
|
|
091-00.72.1010 |
Adapter () |
P.203х50, St45 |
320 |
31,5 |
З-147 |
|
091-00.72.1011 |
Adapter (bulb) |
St45 |
390 |
53,3 |
З-121 |
|
091-00.72.1012 |
Adapter (bulb) |
P.203х50, St45 |
390 |
42,8 |
З-152 |
|
091-79.00.1204 |
Taper tap |
St18ХГТТ |
660 |
62 |
|
|
091-79.00.1205 |
Taper tap |
St18ХГТ |
660 |
71 |
|
