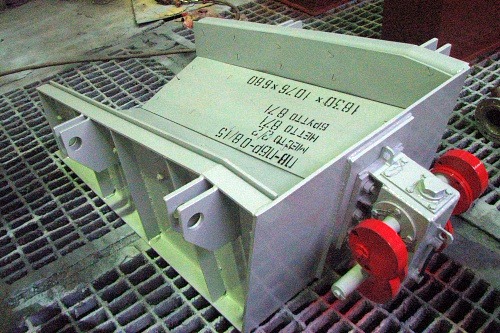

PV-PBR-0,8/1,5 Vibrational bunker feeder

Price On request

Description

Vibration bunker feeder is designed for unloading of lump (up to 500mm) bulk materials with natural angle of slope not more than 44e, not liable to stick, from bunkers and other accumulating vessels at temperature from -20°C to +50°C. The advantage of these feeders is the following: the output from 0 to max. can be regulated by remote control with the help of the frequency converter, without stopping of the whole production line.

The feeders are manufactured with two types of bottom shape - under the consumer requirements:

flat for smooth distribution of the material;
V-shape for distribution of material to conveyors.

Parameters	PV-PBR-0,8/1,5
Tray width, mm	800±10
Tray length, mm	1 500±10
Oscillation amplitude of the tray, mm	2,1-4,3
Oscillation frequency of the box, s^_1	12,2...16,5
Vibration angle, grad.	20
Inclination angle of the bottom, grad.	10
Feeding lumps size, mm, not more	500
Output, t/h	50...300
Drive engine power, kW	7,5
Overall dimensions, mm length width height	1 830±50x 1 640±20x 680±10
Frequency converter El-7011 -015H, 380В, 25А, N=11 кВт length width height mass, kg	228 300 215 6,6
Mass of oscillating part of the feeder, kg	1 050
