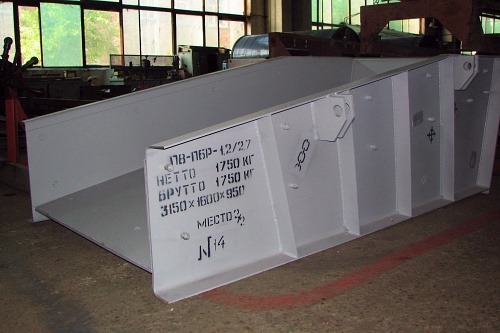

PV-PBR-1,2/2,7 Vibrational bunker feeder

Price On request

Description

It is specified for discharging of cobbed (up to 500 mm) bulk materials with the angle of natural slope not less than 44º, not susceptible for adhesion from bunkers and other accumulating reservoirs within the temperature range from -20Cº to +5.

Technical specifications of PV-PBR-1,2/2,7 Vibrational Bunker Feeder

Name parameters, Meas. unit	Value
Chute width, mm	1200
Chute length, mm	2700
Slope angle of chute bottom, degree	8
* Capacity, t/h	80-300
Drive	Vibration generator ВД2-8/1000, engine 4А160S6У3
Force of vibration generator, N	14 000 – 80 000
** Mass of vibrating parts, kg	1 730
Vibration parameters
** amplitude, mm	4,6
** angle, degree.	30
Frequency of fluctuations, Hz	52,3 – 104,7
Electric drive of vibration generator
power, kWt	11
Frequency of rotation, rpm	1 000
Voltage, V	380
Static load on funnel flange, kN	65,6
*** Dynamic load on funnel flange, kN	5,4
Dimensions of the feeder, mm
Length	3 340
Width	2 110
Height	2 010

* Capacity stated for cobbed material with volumetric mass 1,6 t/m³

** Stated for empty feeder

*** Load 10 times multiplied for short time (10 sec) while starting and stopping
