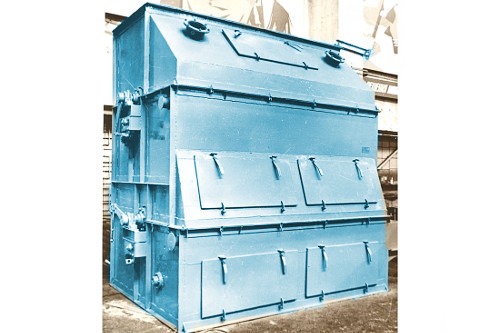

2PBS-90/250А Magnetic drum separator for dry concentration
Magnetic drum separator for dry concentration of fine-crushed highly magnetic ores as well as for extraction of ferromagnetic impurities from chips and lump rejects of non-ferrous metals and their alloys.
Technical specifications of 2PBS-90/250A Magnetic drum separator
| Capacity in terms of hard feed, t/h |
|
|
|---|---|---|
| Magnetic induction on the surface of the drum, T | 0,25 (for lower drum) | |
| Drum diameter, mm | Drum diameter, mm | |
| Drum length (with rims), mm | 2500 | |
| Drive power, kW | 2 х 11 | |
| Feed size, mm | 0 - 60 | |
| Overall dimensions, mm, not more than | 3500x2500x3250 | |
| Mass, kg, not more than | 8500 | |
| Quantity of drums | 2 |
Magnetic drum separator for dry concentration of fine-crushed highly magnetic ores as well as for extraction of ferromagnetic impurities from chips and lump rejects of non-ferrous metals and their alloys. Upon customer’s request it is possible to engineer and supply separators PBS with drum diameter 1200mm and 1500mm, length 1000 - 3000mm with induction 0,1 - 0,5T (tesla).
