BLMS-60/140P junk catchers for belt conveyors (driving)

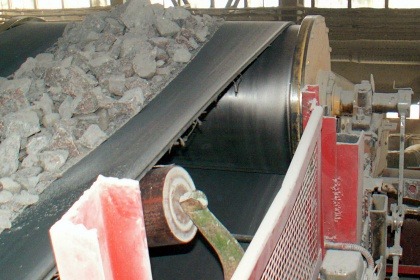

BLMS separator is used for separation of ferromagnetic particles from the bulk material that flows down the conveyor. The operating principle ensures removal of mixes by means of magnetic field created by permanent magnets on the basis of rare earths metals.
According customer's request it can be designed junk catchers with drum diameter 1200 and 1500 mm and length up to 3000 mm and magnetic induction on the drum surface from up to 0,5 Tsl.
Technical characteristics of the separator BLMS-60/140P
| Parameters | BLMS-60/140P |
|---|---|
|
Original hard material output, t/h |
100-150 |
| Magnetic induction on the drum surface, Tsl | 0,3 |
| Drum diameter, mm | 600 |
| Drum length, mm | 1550 |
| Drive power, kW | 7,5 |
| Feeding lumps size, mm, not more | 0,1÷150 |
| Overall dimensions, mm, not more | 2900x1700x900 |
| Number of drums | 1 |
| Mass, kg, not more | 2000 |
By contacting the company Mining Machines JSC, you can lease special equipment for various purposes. We have prepared a special package of leasing programs for small and medium-sized businesses and individual entrepreneurs. Please fill out the form and find out about the conditions.
