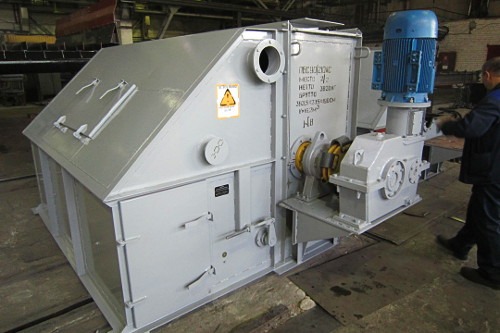

PBS-90/210A Magnetic drum separator for dry concentration
The PBS magnetic drum separators are designed for dry concentration of fine- and middle-crushed highlymagnetic ores as well as for extraction of ferromagnetic impurities from chips and lump rejects of non-ferrous metals and their alloys.
On the basis of mass products there are designed separators with high induction on the surface of the drums (0,25 Tsl), that allows to increase the productivity concentration by more than 20%. It is important due to the general iron impoverishment in feed material and for providing the operation stability of wet magnetic separation active lines. Identification of separators with high magnetic induction can be recognized by "A" index.
The distinctive feature of PBS separators of the latest modifications is fettling of drum frame and elements of the frame with covering of "Amour" type on the basis of polyurethane and ceramics with the guarantee period not less than 12 months. The separators can be fitted with the device of frequency regulation of asynchronous motor turns that provides the possibility of tuning the separator on the necessary speed rate depending on the conditions of feed.
Technical specifications of PBS-90/210A
| Parameters | PBS-90/210A | |
| Capacity in terms of hard feed, t/h |
|
|
| Magnetic induction on the surface of the drum, T | 0,24 | |
| Drum diameter, mm | 900 | |
| Drum length (with rims), mm | 2430 | |
| Drive power, kW | 15 | |
| Feed size, mm | 0 - 40 | |
| Overall dimensions, mm, not more than | 3700x2400x2000 | |
| Mass, kg, not more than | 4000 | |
| Quantity of drums | 1 |
