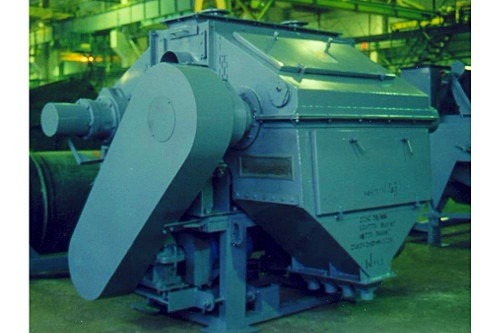

2EVS-36/100 Electromagnetic roll separator
Price
On request
Description
Electromagnetic roll separator of the EVS type designed for dry magnetic concentration of low-magnetic ores, for dressing rare-metal concentrates and for various products deironing with separation into following products: non-magnetic, interim, magnetic.
Technical characteristics of the magnetic separator 2EVS-36/100
| Name parameters, Meas. unit | Value |
|---|---|
| Capacity in terms of hard feed, t/h | 6-12 |
| Magnetic induction within the working , T | 1,65 |
| Roll diameter, mm | 360 |
| Roll length, mm | 1000 |
| Drive power, kW | 22 |
| Feed size, mm | 0,1-4 |
| Overall dimensions, mm | 2700x2000x2000 |
| Mass, kg | 8000 |
| Power, consumed by electromagnetic system, kW, not more than | 8 |
| Number of rolls, items | 2 |
