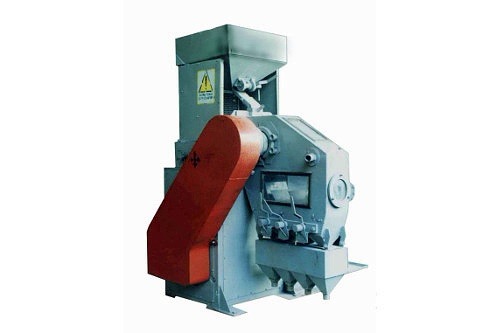

EVS-28/9 Electromagnetic roll separator
Price
On request
Description
Electromagnetic roll separator of the EVS type designed for dry magnetic concentration of low-magnetic ores, for dressing rare-metal concentrates and for various products deironing with separation into following products: non-magnetic, interim, magnetic.
Technical characteristics of the magnetic separator EVS-28/9
| Name parameters, Meas. unit | Value |
|---|---|
| Capacity in terms of hard feed, t/h | 0,3-0,6 |
| Magnetic induction within the working , T | 1,7 |
| Roll diameter, mm | 280 |
| Roll length, mm | 90 |
| Drive power, kW | 2,2 |
| Feed size, mm | 0,1-4 |
| Overall dimensions, mm | 850x1500x1850 |
| Mass, kg | 1000 |
| Power, consumed by electromagnetic system, kW, not more than | 0,8 |
| Number of rolls, items |
