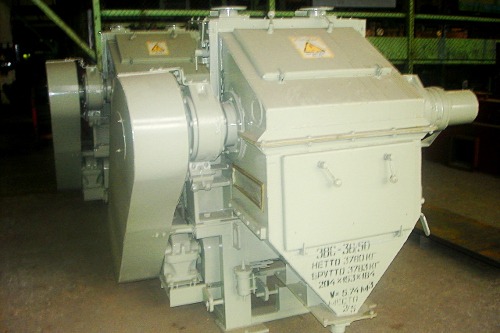

EVS-36/50 Electromagnetic roll separato
Price
On request
Description
Electromagnetic roll separator of the EVS type designed for dry magnetic concentration of low-magnetic ores, for dressing rare-metal concentrates and for various products deironing with separation into following products: non-magnetic, interim, magnetic.
Technical characteristics of the magnetic separator EVS-36/50
| Name parameters, Meas. unit | Value |
|---|---|
| Capacity in terms of hard feed, t/h | 1,5-3 |
| Magnetic induction within the working , T | 1,7 |
| Roll diameter, mm | 360 |
| Roll length, mm | 500 |
| Drive power, kW | 7,5 |
| Feed size, mm | 0,1-4 |
| Overall dimensions, mm | 2100x1600x1900 |
| Mass, kg | 4000 |
| Power, consumed by electromagnetic system, kW, not more than | 1,8 |
| Number of rolls, items | 1 |
