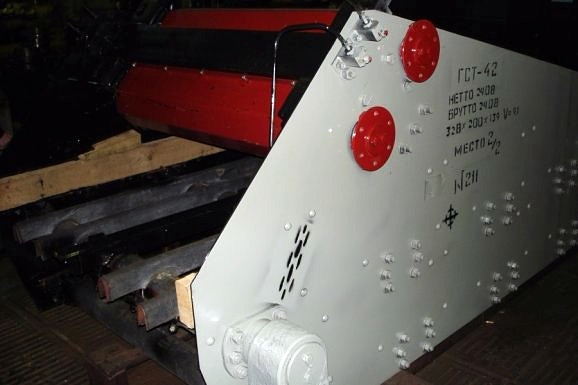

GST-42 self-balanced throw screens
The screens are designed for screening and classification of bulk materials, dewatering, slim removal and suspension washing-off from concentrates with bulk density up to 2,8 t/mi.
Technical specifications GISL-62R
|
Parameters |
GST-42 |
|---|---|
|
Feeding lumps size, mm, not more |
40 |
|
Feedstock output, t/h |
90 |
|
Screening surface type: |
is defined by the producer |
|
Slot width (lower sieve), mm |
accord. customer RS |
|
Screening surface dimensions, mm |
3 080 x 1 500 |
|
Active area of one sieve, m2 |
4,5 |
|
Number of screening surfaces |
2 (1) |
|
Screening angle, grad. |
0...8 |
|
Engine installed power, kW |
2x4 |
|
Frame vibration amplitude, mm |
3,0...4,0 |
|
Frame vibration frequency, min-1 |
970 |
|
Overall dimensions of screen vibrating part, mm, not more |
3 300 x 2 000 x 1 600 |
|
Mass, without spare parts, kg, not more - two-sieves - one-sieves |
3 200 2 900 |
