In stock
GIL-43A unbalanced-throw screens of light duty type
Price
On request
Description
Unbalanced-throw screens of the GIL type are designed for dry screening of coal, anthracites, combustible shale, grit, and other bulk materials. The material can be devided in 2, 3, 4 types of sizes. Release screens the GIL type with frequent fluctuations from 960 to 1450 fluctuations a minute of all standard sizes is mastered.
| Parameters | GIL-43A |
|---|---|
| Feeding lumps size, mm, not more | 300 |
| Bulk density, t/m3, not more | 1,4 |
| Feedstock output, t/h | 80 |
| Type of screening surface | mesh on GOST 3306 |
| Dimensions of screening surface, mm | 4 000 х 1 500 |
| Active area of one sieve, m2 | 4,8 |
| Number of screening surfaces | 3 |
| Screening angle, grad. | 10-25 |
| Engine installed power, kW | 7,5 |
| Frame vibration amplitude, min | 1,7-3,6 |
| Frame vibration frequency, min | 970 |

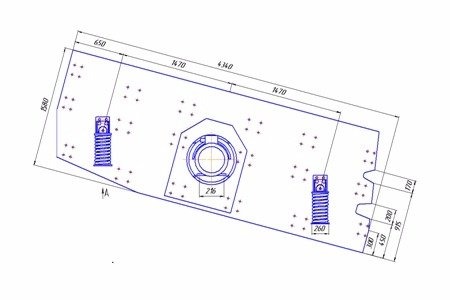

| Overall dimensions of screen vibrating part, mm, not more | 4 340 х 2 230х 1 580 |
| Vibrating part mass, kg | 3 200 |
