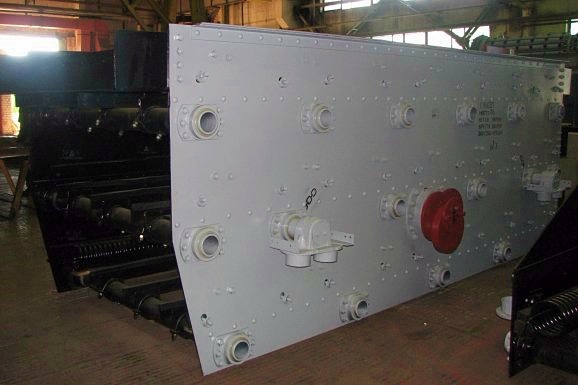

GIL-63P unbalanced-throw screens of light duty type

Price On request

Description

Unbalanced-throw screens of the GIL type are designed for dry screening of coal, anthracites, combustible shale, grit, and other bulk materials. The material can be devided in 2, 3, 4 types of sizes. Release screens the GIL type with frequent fluctuations from 960 to 1450 fluctuations a minute of all standard sizes is mastered.

Parameters	GIL-63P
Feeding lumps size, mm, not more	300
Bulk density, t/m³, not more	1,4
Feedstock output, t/h	50-200
Type of screening surface	mesh on GOST 3306
Dimensions of screening surface, mm	4 880 х 2 000
Active area of one sieve, m²	9,8
Number of screening surfaces	3
Screening angle, grad.	15-30
Engine installed power, kW	18,5
Frame vibration amplitude, min	2-4,5
Frame vibration frequency, min	730; 975
Overall dimensions of screen vibrating part, mm, not more	5 180 х 2 730 х 1 750
Vibrating part mass, kg	5 300
