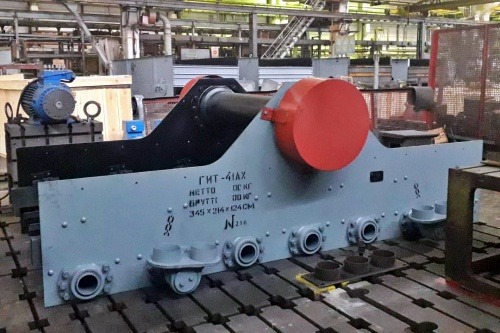

GIT-41AH unbalanced-throw screens of heavy-duty type

Price On request

Description

The unbalanced-throw screens of heavy-duty type are designed for dry screening of ores of ferrous and non-ferrous metals and other bulk materials. The material can be devided in 2,3,4 types of sizes.

The construction of the vibrator shaft is changed, which allows to quickly change the location of the drive without reassembling the vibrator itself (the half-coupling is attached directly to the unbalance).

The difference between the screen GIT-41AH and GIT-41A is that the screen GIT-41AH is used for cooled material.

Parameters	GIT-41AH
Feeding lumps size, mm, not more	200
Bulk density, t/m³, not more	2,8
Feedstock output, t/h	230
Screening surface type - Upper	6; 8; 10; 12
Screening surface type - Lower	wire sieve with meshes sizes, mm
Dimensions of screening surface, mm	3 450 x 1 500
Active area of one sieve, m²	5,1
Number of screening surfaces	1
Screening angle, grad.	15-30
Engine installed power, kW	15
Frame vibration amplitude, min^-1	3-8
Frame vibration frequency, min^-1	730
Overall dimensions of screen vibrating part, mm, not more	3 450 x 2 140 x 1 242
Mass, kg, without engine, cover	2 200
