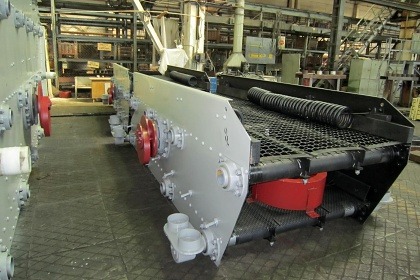

GIT-42M unbalanced-throw screens of heavy-duty type
Heavy-duty throw screens are designed for dry screening of ferrous and non-ferrous metals ores and other bulk materials into two or three classes as per lump size.
Technical specifications of GIT-42M
| Name parameters, Meas. unit | Value |
|---|---|
|
Feeding fractions size, mm, not more than |
300 |
|
Capacity, t/h |
970 |
|
Screening surface type: |
|
|
Upper furnace grate with slot size, mm |
12 20; 40; 60 80 |
|
Lower woven wire with cells sizes, mm |
12x12; 20x20; 25x25 |
|
Dimensions of the screening surface, mm |
1500 х 3400 |
|
Useful screening surface area of one deck, m2 |
5,1 |
|
Quantity of decks of screening surface, items |
2 |
|
Angle of slope of screening surface, degrees |
15…30 |
|
Vibrator power, kW |
15 |
|
Amplitude of screening surface fluctuations, mm, within |
3 - 6 |
|
Frequency of screening surface fluctuations, min.-1 (rpm) |
730; 970 |
|
Overall dimensions of vibrating part of screen, mm, not more than |
3600x2300x1300 |
|
Weight, kg, without drive and cover |
3800 |
|
Weight with spare parts and accessories, kg |
4200 |
|
Weight of cover, kg |
1760 |
|
Correct level of sound power, dB |
108 |
Heavy-duty throw screens are designed for dry screening of ferrous and non-ferrous metals ores and other bulk materials into two or three classes as per lump size.
