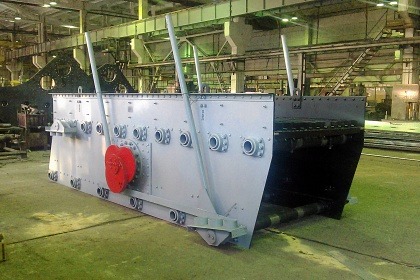

GIT-52MB unbalanced-throw screens of heavy-duty type

Price On request

Description

Heavy-duty throw screens are designed for dry screening of ferrous and non-ferrous metals ores and other bulk materials into two or three classes as per lump size.

Technical specifications of the heavy-duty throw screen GIT-52MB

Feeding fractions size, mm, not more than	400
Capacity, t/h	350-800
Screening surface type:
Upper furnace grate with slot size, mm	100
Lower woven wire with cells sizes, mm	20x20
Dimensions of the screening surface, mm	1750 х 5000
Useful screening surface area of one deck, m2	8,8
Quantity of decks of screening surface, items	2(1)
Angle of slope of screening surface, degrees	15
Vibrator power, kW	22
Amplitude of screening surface fluctuations, mm, within	6 - 9,6
Frequency of screening surface fluctuations, min.-1 (rpm)	730
Overall dimensions of vibrating part of screen, mm, not more than	5250x2190x1505
Weight, kg, without drive and cover	7087 (4800 without screening surface)
Weight with spare parts and accessories, kg	7432
