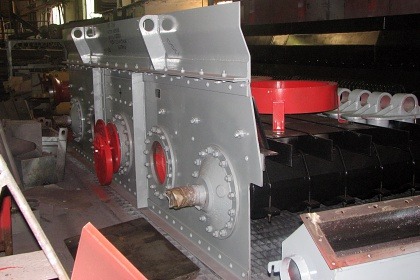

GIT-71M unbalanced-throw screens of heavy-duty type
Heavy-duty throw screens are designed for dry screening of ferrous and non-ferrous metals ores and other bulk materials into two or three classes as per lump size.
Technical specifications of GIT-71M
| Name parameters, Meas. unit | Value |
|---|---|
|
Feeding fractions size, mm, not more than |
800 |
|
Capacity, t/h |
3000 |
|
Screening surface type: |
|
|
Upper furnace grate with slot size, mm |
40; 60; 100 125 150 |
|
Dimensions of the screening surface, mm |
2500 х 5200 |
|
Useful screening surface area of one deck, m2 |
13,0 |
|
Quantity of decks of screening surface, items |
1 |
|
Angle of slope of screening surface, degrees |
10…30 |
|
Vibrator power, kW |
22 |
|
Amplitude of screening surface fluctuations, mm, within |
4 - 9,6 |
|
Frequency of screening surface fluctuations, min.-1 (rpm) |
730 |
|
Overall dimensions of vibrating part of screen, mm, not more than |
5360x2500x1750 |
|
Weight, kg, without drive and cover |
12000 |
|
Weight with spare parts and accessories, kg |
12920 |
|
Weight of cover, kg |
3072 |
|
Correct level of sound power, dB |
115 |
Heavy-duty throw screens are designed for dry screening of ferrous and non-ferrous metals ores and other bulk materials into two or three classes as per lump size.
