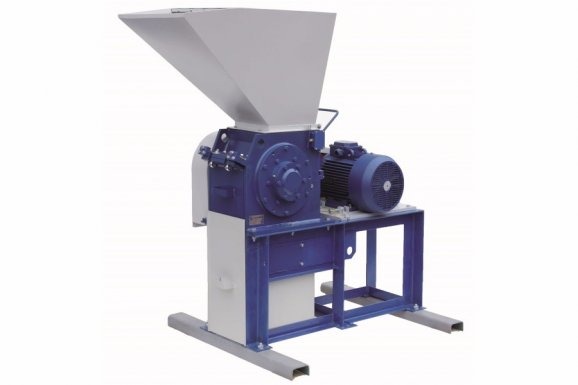

CM 250 сutting mill

Cutting mill CM 250 are designed to comminute fiber, polymer and plant materials.

In cutting mills, comminution occurs by means of cutting – shear strains of material particles between rotor blades and housing.

The grain size of the comminuted product is regulated by the openings in the discharge grate and the physical properties of the material.

The CM 250 cutting mill is high-power equipment designed for busy laboratories or small production facilities.

Advantages of Cutting mills:

• Ability to obtain various comminuted material grain sizes by means of:
  • selecting the discharge grate opening size;
  • installing different numbers of blades in the housing;
  • connecting the Cyclone dust collector to CM 250;
• Precise setting of minimum gap between the rotor blades and the housing provides shear forces on particles of the comminuted material;
• Equipment of the CM 250 with receiving containers for three discharge modes: to the receiving container, through a dust collector and combined;
• Equipped with patterns, extractors and a special maintenance tool;

Applications: bismuth telluride, carbon fiber, PVC, polyester resin, ABS resin, CDs, SIM cards, nanotubes, collagen, rubber, jute, PAN fiber, fabric, cotton, rubber, silicon, wax, rind, chicory, dry mushrooms, tea.

Industries: metallurgy, food, chemical, pharmaceutical.
