Hammer crushers

Price On request

Description

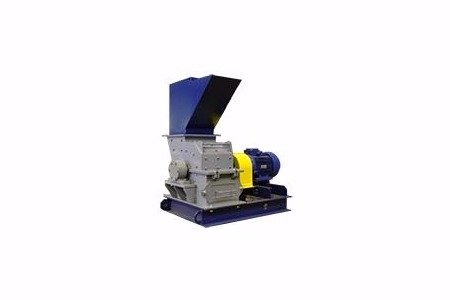

High speed hammer crushers are used for comminution, of various materials ranging from plastics and fibrous materials to metalchips and electronic wastes

Model	Rotor dimensions,mm diameter width	Max.feed size, mm*	Grate opening, mm	Motor, kW	Crusher dimensions,mm -length -width -height	Mass, t
МD3х2	300 200	50	3-10	4	850 580 715	0,16
МDV3х2	300 200	50	3-10	4	1115 580 715	0,18
МD4х3	400 300	100	3,6,8,10,12,16	7,5	1220 775 1245	0,51
МD5х2	500 200	100	5-50	11	1140 790 1210	0,31
МDV5х2	500 200	100	5-50	11	1545 790 1210	0,4
МD5х5	500 500	100	5-50	15	1412 980 1210	0,75
МDV5х5	500 500	100	5-50	15	1412 1385 1210	0,77
МD7х5	700 500	250	10-100	30	1880 950 1420	1,8
МDV7х5	700 500	250	10-100	30	1880 950 1420	1,8
МD7х7	700 700	250	10-100	37	1880 — 1150 — 1420	2,0
МDV7х7	700 700	250	5-50	37	1872 — 1900 — 1420	2,3
	700 900	250	10-100	45	1880 — 1350 — 1420	2,2
МDV7х9	700 900	250	5-50	45	1812 — 2100 — 1420	2,3
МD7х13	700 1270	300	10-100	90	2560 — 2300 — 1145	3,8
МD10х7	1000 700	400	30 - 200	75	2990 — 1900 — 1750	5,2
МD10х10	1000 1000	400	30-200	90	2990 — 2220 — 1750	6,1
МD10х13	1000 1300	400	30-200	110	3000 — 2540 — 1750	6,5

Note:

This value depends on material properties
