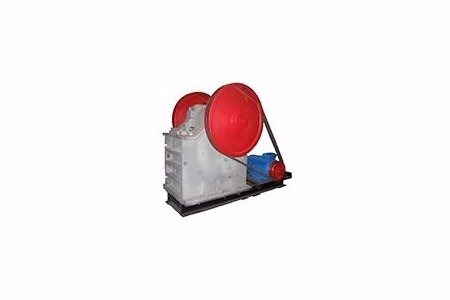

Jaw crushers
Used for crushing brittle materials of up to 250 MPa compressive strength
Application:
Jaw crusher may be used both as a separate unit and as a 1-st stage crusher in the circuit with a vibrating cone crusher where JCS 180х250 is recommended with KID-300 and JCS 250х400 with KID-450 crushers, a high reduction ratio and 2-3 mm product size was attained in such circuits.
|
Model |
Feed opening, mm |
Capacity, |
Feedsize, mm |
Discharge opening size, mm |
Drive motor, kW |
Dimensions, mm lengh-width-height |
Mass, |
|---|---|---|---|---|---|---|---|
|
JCS180х250 |
180-250 |
1,5-5 |
170 |
5-30 |
7,5 |
1800-775-1295 |
1100 |
|
JCS250х400 |
250-400 |
3-17 |
220 |
20-60 |
18,5 |
2050-1120-1630 |
3000 |
Note:
The crushers may be installed in mobile crushing plants.
