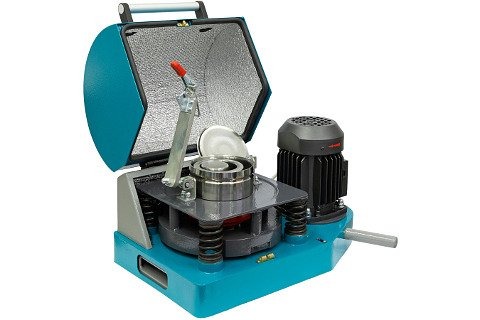

VG 6 vibrating grinder

Vibrating grinder VG 6 are designed to comminute samples to a finely dispersed state in intermittent operation.

In a vibrating grinder, comminution occurs by means of abrasion – simultaneous compressive and shear strain of material particles between the crushing bodies and the cup walls.

The grain size of the ground material depends on the grinder operating time, the initial grain size and the physical properties of the material, as well as the cup loading volume.

The VG 6 vibrating grinder is designed for simultaneous comminution of six small (up to 5 cm³) samples.

Advantages vibrating grinders:

• High comminution efficiency due to:
  • grinding elements made from high-hardness tool steel;
  • the shapes of the grinding bodies, enabling circulation of the material inside the cup.
• Quick-release cup fastener;
• Use in the drive of an elastic petal coupling that reduces the vibrations transmitted to the support surface;
• Effective noise insulation;
• Equipment of the VG 6 with a control panel featuring a timer and Т 80 pedestal.

Applications: ferroalloys, slag, coke, granite, marble, cement, glass, soda, mineral fertilizers, soil.

Industries: mining, metallurgical, construction, chemical, pharmaceutical.
