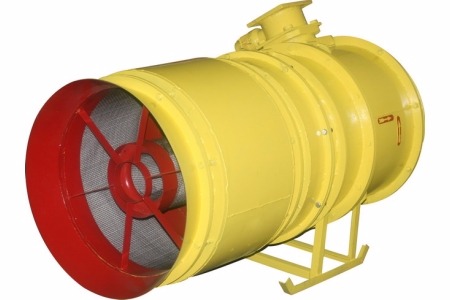

VME-6 (ВМЭ-6) axial electric drive fan
Mine booster fan, axial with electric drive VME-6 (ВМЭ-6), single-stage, explosion-proof is designated to ventilate blind drifts in mines, including those hazardous in terms of gas and dust, at air density of 1,3 kg/m3, at ambient air temperature of -20°С to +35°С, dust content of up to 50 mg/m3 and relative humidity up to 95% (at the temperature of +25°С).
Upon separate request the fan may be fabricated with the noise suppressor.
|
Name of indicator |
Indicator |
|---|---|
|
Nominal diameter of fan impeller, mm |
630 |
|
Rated feed, m3/sec. (supposed deviation minus 10%) |
7,0 |
|
Rated full pressure, Pa (supposed deviation minus 10%) |
2500 |
|
Power of electric drive, kW |
25 |
|
Rotation frequency, min.-1(synchronous) |
3000 |
|
Overall dimensions, mm: |
|
|
- length |
1075 |
|
- width |
750 |
|
- height |
975 |
|
Weight of unit, kg |
420 |
