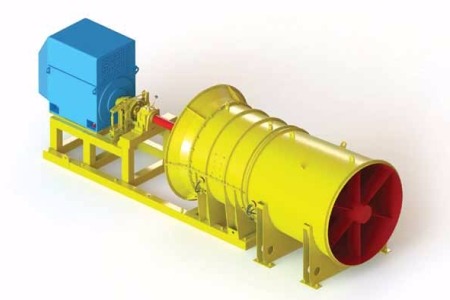

VO-24K (ВО-24К) axial fan

Price On request

Description

Designation:
for main ventilation of coal mines and mines, as well for operating in ventialtion systems of enterprises in other industrial sectors, they are designed to move air and non-aggressive gases.

Distinctive features:

advanced aerodynamic scheme with doubled blades of fan impeller;
high maximal and operating performance factor;
synchronous turn of impeller blades by rack-and-pinion gear provides for adjustment of modes within the operating range and reversing of the air flow within 3 minutes without changing the rotation direction with the reversibility index not less than 0.75;
reliable automatic control system.

Name of indicators	VO-24K (ВО-24К)
	aerodynamic schemes
	М-24	М-25
Nominal diameter of fan impeller (before switching off ±5%), mm	2400
Rotation frequency of rotor, min.^-1	750/1000
Feed within the operating range (before switching off ±10%), m³/с:
- minimal	60/80	46/60
- maximal	215/290	165/225
Static pressure within the operating range (before switching off ±10%), daPa:
- minimal	50/100	140/250
- maximal	240/410	320/570
Maximal performance factor, not less than	0,82
Feed at reverse, not less than, %	75
Electric motor power, kW*	630/1000	500/1000
Weight of fan (without electric motor and input- output devices), not more than, kg	12000/12600
Overall dimensions, not more than, mm:
- length	9500/9800
- width	3300
- height	3030

Configuration:

Blades
Casing
Header
Spinner
Electric motor
Flow straightener
Frame
Brake
Volute chamber

*according to customer’s specification.
It is possible to install both low-voltage and high-voltage motors.
