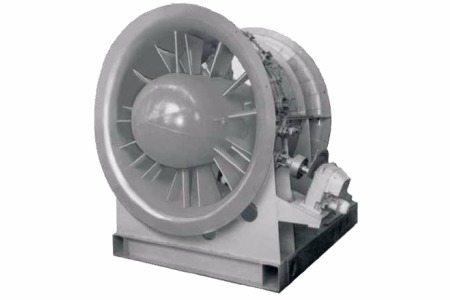

VOM-18 (ВОМ-18) axial fan

Price On request

Description

Designation:
to ventilate subways, mines, transport tunnels, mine galleries with air consumption of 15 to 70 m3/sec and depression of 30 to 700 Pa.

Distinctive features:

highend aerodynamic scheme, high performance factor, reverse is not less than 96% of feed from direct run, alteration of angle of fan impeller blades in motion from electric drive, remote turn of flow straightener blades, simplified mounting and dismantling, operating safety, availability of control units;
the fan runs in the mode which complies with the specification of the grid of the facility to be ventilated, with high operating performance factor;
fire-resistance at temperature of 250°С within one hour period;
the fan is supplied in one of 4 configurations: with the gear of fan impeller blade turning and without it; with the volute chamber and without it.

Configuration:

Fan impeller
Casing
Header with railing
Spinner
Gear of fan impeller blade turning
Electric motor
Flow straightener
General foundation frame
Brake

Name of indicator	Indicator
Power of electric drive, kW	45; 55
Rotation frequency, rpm	1800
Diameter of impeller, mm	1800
Feed within the operating range, m³/s	20-70
Full pressure within the operating range, Pa	70-600
Maximal performance factor	0,85
Overal dimensions, mm:
- length	3600
- width	2700
- height	2700
Weight, kg	4850
