EKG-15 crawler-mounted mining shovel

Price On request

Description

We supply spare parts for this excavator model from stock in Krasnoyarsk and place orders with machine-building plants. Requests are received by fax: +7 (391) 2901555, 2901500, and 2901501.

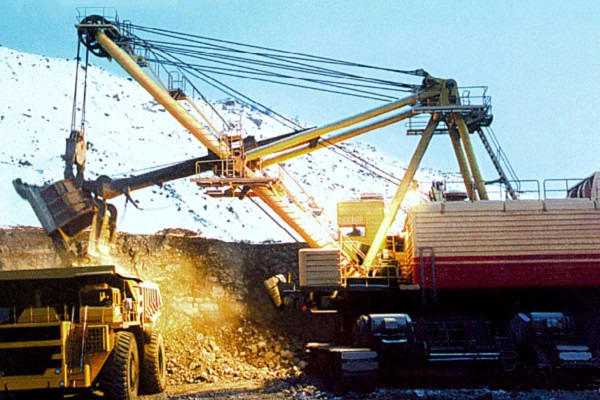

Mechanical shovel with cable crowd. Designed for open-pit mining of minerals and overburden rocks in ground of up to V category including, overburden rocks dumping, and high-volume excavation works in industrial engineering.

The excavator ensures high output and manoeuvrability, is easy to operate and maintain.

The shovel present day design and application of high-strength steels in essential mechanisms and low-alloy steels in basic bearing structures maintain the excavator reliable operation during heavy dynamic loads and at ambient temperature from -40°C to 45°C.

The dipper is equipped with a redesigned dipper door brake mechanism reducing vibrations and preventing the dipper handle and body from the door impacts.

Dipper hanger is made of one tackle with balancing;sheave based on the cross tube of boom top segment. Application of new dipper hanger construction has decreased the load on the boom when digging. Strengthened handle beam with rigidly fixed half-blocks has increased the handle fatigue endurance limit.

Unified crowd and hoist winches design. All the shovel mechanisms are provided with individual electric drives. Hoist, swinging and crowd drives are equipped with oil heaters.

All excavator drives are equipped with disk electromagnetic brakes which activate during control circuits opening and excavator blackout.

Basic technical parameters

Capacity of dipper for heavy ground, m3	15
Cycle time (dump work, swing angle of 90°), sec	28
Travel speed on the level, km/h	0,43
Maximum climbing angle at moving across solid ground, degree	12
Average ground pressure, MPa	0,21
Main motor power, kW	1250
Supply voltage, V	6000
Main mechanisms control	electrical with help of brackets
Auxiliary mechanisms control	electrical and electro-pneumatic
Weight, t	675

Swinging mechanism consists of three planetary gear cases with individual drives and disk electromagnetic brakes.

To lubricate tooth gears swing gear cases are fitted with individual pumping units and pressure-check relay which cut out swing drive at no lubricant circulating.

At low temperatures swing drives oil is heated by electric heaters with automatic cut-in and cut-out at stated intervals of operational temperatures.

Undercarriage with large rollers consists of two shortened crawler trucks preventing track adjusting mechanism from dipper impacts.

Separate from undercarriage the travel gear case is fixed to it by four fingers to increase its reliability.

The excavator is supplied with the tools and spare parts kits.

We perform erection, commissioning and turnkey of the shovels EKG-15 as a form of the corporate service of fabricated mining equipment.

All set of works is carried out for 120 days. Accelerated work performance is provided by increased machine erection availability, presetting and block electrics enlargement, and proficiency of erection crews specializing in the assembly of the concrete type machines.

Basic dimensions, m

boom length	18
handle length	13,1
maximum digging radius	23,4
maximum digging height	15,6
maximum dumping radius	20,2
maximum dumping height	10,8
dumping radius at maximum height	22,6
dumping height at maximum radius	7,8
maximum digging radius at floor level	15,6
least digging radius at floor level	10,10
boom dimensions	16,02
excavator height	18,5

By particular contract “Krastyazhmash” Production Department can complete any order providing the variety of technological requirements.

Different versions of working equipment are possible on the basis of EKG-15:

increase of the dipper capacity without the change of geometrical parameters;
height increase of mined bench face and digging radius at appropriate elongation
of working equipment and variations of the dipper capacity;
modular electrical equipment;
loads limiting device when digging;
revolving frame balancing device.
