Scrubber-trommel SB-60 is available at the best price!
Attention! Breaking news! We are looking for the owner of a new scrubber-trommel SB-60!
— The equipment was produced in 2019, it is fully equipped and ready for operation.
— The price is 6 600 000 rubles, including VAT, payment terms - 100% prepayment. The price under other payment terms will be discussed individually.
— We will ship the scrubber-trommel from Irkutsk city to any territory of Russia or near and far-abroad countries. Our own Logistics Department will help to calculate transportation costs and deliver this oversized cargo in a short time and at a reasonable cost.
What makes the SB-60 scrubber-trommel special?
— Each element of the sieve of the sowing stock is a removable part which is made of alloy steel;
— Additional protective rubber lining of the barrel prevents rapid wear of sieves;
— According to the request of the customer we can make diesel or electric drive;
— Car units and pneumatic bars pass torque to the scrubber-trommel.
Full specifications of scrubber-trommel
| Parameter / unit of measurement | Value |
| Overall dimensions , L * W*h, mm | 9700*2600*2960 |
| Overall dimensions of the frame-sled, L * W, mm | 7900*2245 |
| Weight, t | 18 |
| The electric motor, kW (R/min) | 37 (1000) |
| Diameter of inlet, mm | 1000 |
| Diameter of SB, mm | 1600 |
| Length of disintegrating stock, mm | 3689 |
| Length of sowing stock, mm | 1800 |
| The length of output stock, mm | 500 |
| Length of barrel of SB, mm | 6020 |
| Pipe diameter of SB, mm | 159 |
| Receiving hopper (parameters of charging door), l * W, mm | 1700*2000 |
| The angle of inclination of the wall of the hopper, degrees | 30 |
| Pipe diameter of charging hopper, mm | 50 |
| Dimensions of the tray for removal, D * W, mm | 2000*2330 |
| Name of metal | St3 |
| Name of metal of replaceable sieves | 10hsnd |
| The thickness of the metal scrubber parts, mm | 14 |
| The thickness of the metal sieve, mm | 20 |
| The thickness of the metal of the output part of the SB, mm | 14 |
| Productivity, m3 / h (on input sand) | 60 |
| The number of sowing stocks, (according to customer) PCs | 1 |
| Type of drive platform | based on GAZ-66 |
| The number of revolutions, the rpm | 11-12 |
| The size of the trapezoid slit, mm | 20 |
The completeness of the scrubber-trommel
| Barrel scrubber-trommel SB-60 | 1 PC. |
| The charging hopper with a pipe-sprinkler | 1 PC. |
| Receiving hopper for pulp | 1 PC. |
| Tray for removal of gali | 1 PC. |
| Sprinkler pipe for SB | 1 PC. |
| Set of metal sieves with clamping segments | 1 PC. |
| Support-drive platform based on the frame-sleigh | 1 PC. |
| Electric motor 37 kW (1000 rpm) | 1 PC. |
| Control Cabinet 1 | 1 PC. |
| Central gearbox 1 | 1 PC. |
| Number of main wheels (UAZ R15 a/b KAMA) | 2 PCs. |
| Number of support wheels on the output stock of the barrel | 2 PCs. |
| The number of supporting-driving wheels on disintegrating stock | 8 PCs. |
| Operating manual | 1 PC. |
| Product passport | 1 PC. |
| Declaration of conformity | 1 PC. |

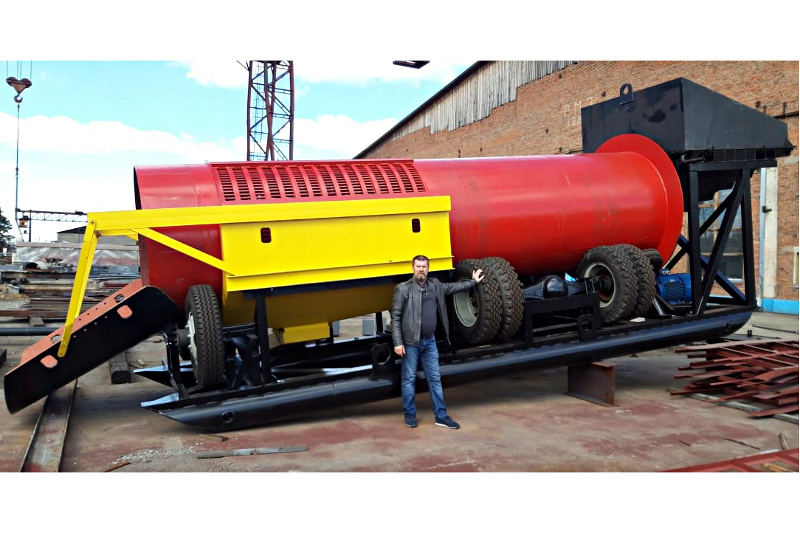

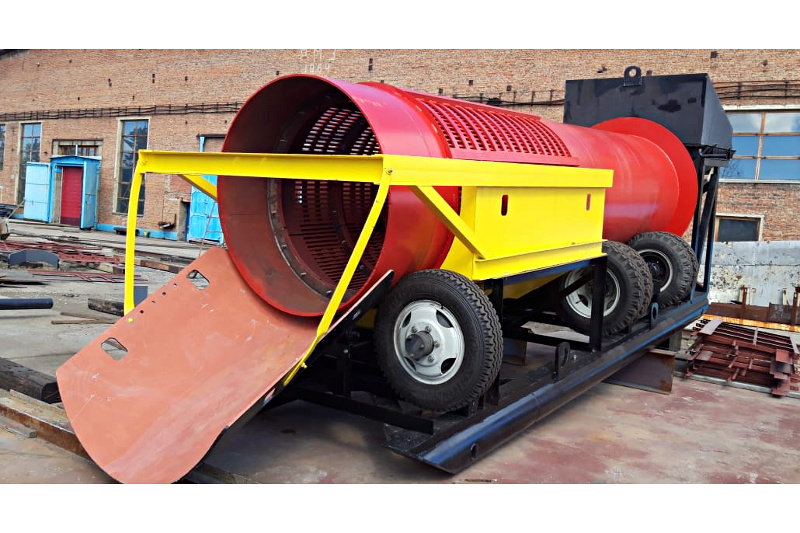

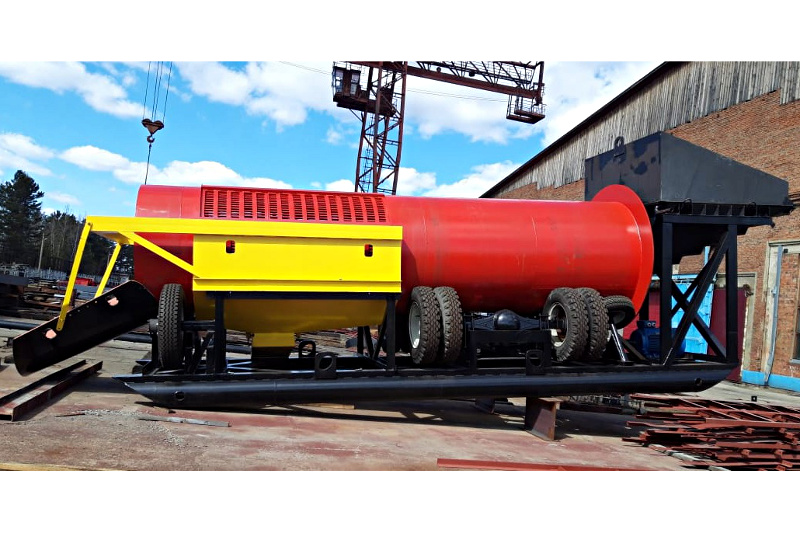

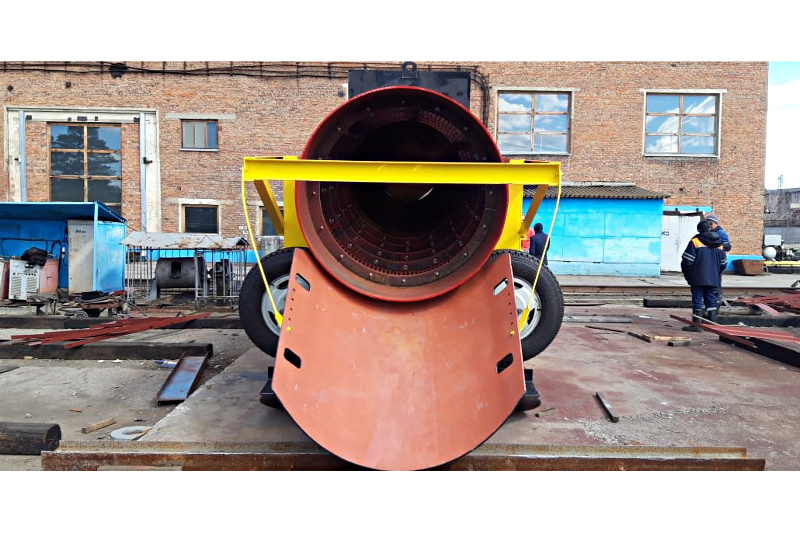

Scrubber-trommel SB-60
Hurry up to buy the scrubber-trommel at a best price!
For the purchase of SB-60 and other washing equipment, please call 290-15-00, 8 (913) 196-74-48 or send e-mail to gm@zaogm.ru.
