BU-20-2AM (БУ-20-2AM) drilling rig

Price On request

Description

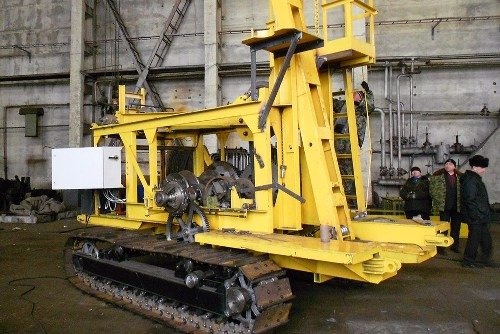

Rig BU-20-2AM (БУ-20-2AM) is developed specifically for exploring placer gold deposits and was manufactured by Orotukan mining equipment works (Magadan oblast) until 2005. The rig provides for protraction of holes in frozen and in thawed alluvial deposits with and without well casing.

Deservedly recognised as reliable and severe duty the rig is still used by many gold miners of Siberia and the Far East.

We offer you to purchase boring tools and spare parts for BU-20-2AM (БУ-20-2AM) rig!

Drilling tools	Weight, kg
Chisel shoe Б81/7	4,6
Piston bailer Б83	174,1
Rod BI.01 (БИ.01)	340,0
Tool wrench BI.02.000 (БИ.02.000)	53,0
Pony rod BI.03.01 (БИ.03.01)	270,0
Bushing BI.03.02 (БИ.03.02)	15
Casing pipe BI.04.00 (БИ.04.00)	140,6
Nippel BI.04.02 (БИ.04.02)	9,6
Shoe BI.05 (БИ.05)	9,3
Shoe BI.05 (БИ.05) (armoured)	24
Drifter BI.06.00 (БИ.06.00)	250,0
Drive-out head BI.07 (БИ.07)	13,0
Spear BI.09.00 (БИ.09.00)	45,0
Hinged tongs BI.10.00 (БИ.10.00)	18,9
Wire-rope socket BI.11.00 (БИ.11.00)	115,4
Tube shell BI.11.02 (БИ.11.02)	3,4
Casing drive head BI.13.00 (БИ.13.00)	25,7
Discharge gear BI.22.00 (БИ.22.00)	66,0
Pipe clamp BI.23.00 (БИ.23.00)	28,0
Fishing device BI.24.00 (БИ.24.00)	125,3
Fishing slip (set of 3 pcs.) BI.24.06 (БИ.24.06)	4,98
Fishing slip (set of 3 pcs.) BI.24.08 (БИ.24.08)	9,9
Fishing slip (set of 3 pcs.) BI.24.09 (БИ.24.09)	12,0
Rotary jar BI.14.00.SB (БИ.14.00.СБ)	168,1
Washer Г111/А3	0,7
Nut Г111/А4	1,2
Threaded stud Г111/5	1,32
Plain stud Г111А/6	0,98
Body of bore bit Г111/А1	84,0
Flat wing Г111/14	7,7
Rounding wing Г111/12	9,0

Spare parts	Weight, kg
Pinion gear БУ-03-157	3,6
Pinion gear БУ-03-159	3,0
Pinion gear БУ-03-165	4,7
Track БУ-05-23	11,8
Jack БУ.10.00Б	24,3
Piston bailer unit БУ.22.12.03	20,8
Support roller 05-00-010А	4,0
Support sleeve 5-00-014А (steel)	1,8
Track bead О5-06-003	1,0
Guide roller sprocket 05-07-003А	25,7
Support axis, roller С5-10-000	3,2
Pinion gear (shock-induced, shaft free) 14-00-0001	180,0
Wheel (idler) 116.05.200.01	35,0
Grip 116.05.000.00М	95,0
Main disc 116.07.120.02	14,5
Drill beam 116.02.000.00Мсб	700,0
Drill pinion gear with shaft 116.02.100.00Мсб
Cone sleeve 116.02.100.04	0,8
Crank arm 116.09.000.00	74,0
Drill beam unit 116.02.200.00	106,9
Semi-rim of unit БУ-02-69	61,4
Crank arm pin БУ-04-352А	12,0
Yoke 116.07.100.03	5,6
Sand reel 116.09.000.00	166,0
Working winch 116.04.00.00	660,0
Handywheel 116.07.000.01	394,0
Friction clutch 116.07.100.00	47,2
Shock-absorber 116.01.150.00	34,4
Jib 116.01.000.00Мсб	1 040
Gearwheel (drill pinion gear of main shaft) 116.07.400.01	22,0
Jib head 116.01.100.00сб	233,0
Caryying roller 116.05.610.01	10,0
Half clutch 116.07.400.00	32,4
Variator 116.07.100.21	2,5
Main shaft 116.07.000.00	545,0
Tram 116.05.000.00	3 628
Clamping disk 116.07.100.20	11,3
Brake band 116.27.100.00	13,9
Brake band 116.27.200.00	15,7
Driven sprocket 116.05.300.05	27,9
Axis of support roller 116.05.010.01	8,1
Guiding attachment (bell) 116.01.500.00	73,9
Half-clutch 116.07.200.00	25,4
Half clutch 116.07.300.00	20,8
Brake band 116.29.130.00	2,6
Feed shaft 116.05.300.00	141,0
Pinion gear 116.06.200.01 Z-108	87,1
Wheel З-74 (of operating winch) 116.04.000.01	229,2
Doubled sprocket 116.05.500.00	49,3
Gear wheel (winch pinion gear of main shaft) 116.07.300.02	11,5
Jib unit (wheel) 116.01.100.15	90,0
Chain 25 links	35,3
Chain 35 links	44,5
Gear wheel (back change wheel of main shaft) 116.07.200.04	4,5
Sand line rubber (sheave)	10,0
Electric board of grid BU-20-2UShM (БУ-20-2УШМ)	90,0
Guiding sprocket 05.07.001	44,8
Hub of unit БУ.02.53А	35,5
Friction disk (set of 2 halves) 116.07.110.00	10,0
Motor sheave (60х250; 60х330) 116.13.000.01	0,34
Band Б(С)-5600	4,0
Semi-rim rubber	5,0
