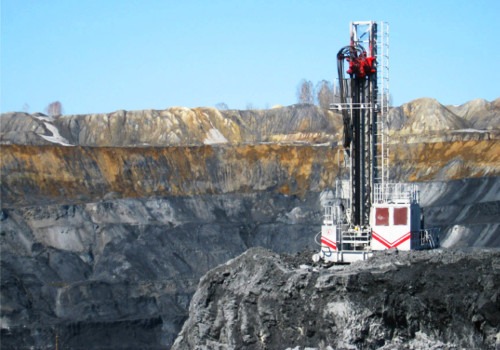

SBSH 160/230 BLASTHOLE DRILL

Price On request

Description

Gidrofitsirovanny blasthole drill , with the electric drive, the machine boring sharoshechny type is intended for drilling of technological explosive wells in breeds by f fortress - 6...18 units on a scale of the prof. Protodyakonov on open-cast mountain minings of minerals, and also when working on заоткоске ledges of boards of pits on a limit contour. Components of the machine are placed on a platform which is established on a caterpillar drive of excavator type.

All mechanisms of hydraulic system of the machine work from the main pump which is put in action by the 75 kW electric motor, being powered from career networks of 380 volts.

The mast represents the welded spatial farm made of pipes of square section with open forward part. In a mast take place: the rotary giving mechanism, separator for bars, a lunette and the screwing together mechanism - discreditings boring.

power bearing metalwork of the machine is executed from the alloyed became;
hydraulics components - mobile execution, Bosch Rexroth firm;
drives of the machine have a power stock at the maximum loadings that considerably increases a resource of the main units;
protection of hydromotors against cavitation is applied, including at machine movement under a bias;
regulation of productivity of the main pump is carried out on feedback from consumers depending on performance of operations. Due to optimum use of power characteristics of the adjustable pump the power of the driving engine is reduced;
bessvarny connections of pipelines and the sleeves of a high pressure excluding leakages of oil from a hydraulic system are applied;
for control of process of drilling modern instrumentations are used;
all auxiliary operations are automated;
shutdown of hydromotors of a course at machine towage is provided;
at the lifted and lowered mast optimum centering of the machine is provided.
