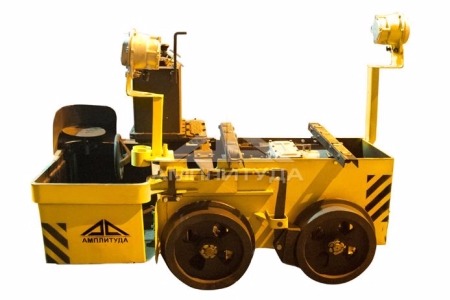

ARP2T accumulator locomotive
It is designed for transportation of trains in underground workings of mines and pits with a gradient up to 0.005 and track bending radius minimum8 m, wherein the current safety regulations permit operation of accumulator locomotives. The electric locomotive is manufactured according to the Technical Specifications of Ukraine 35.2-25103132-020:2010. It is designed for hauling operations in mines, pits and quarries.
The electric locomotives are produced in version U5 under GOST 15150-69 for a land, where height above sea level does not exceed 1200m.
Technical characteristics
| Serial no. | Parameter designation | Unit of measure | Value |
|---|---|---|---|
| 1. | Traction effort in hours mode | ||
| for a track 550, 575,600 | kN | 3,2 | |
| for a track 750,900 | 3,2 | ||
| 2. | Speed - in hours mode | ||
| for a track 550, 575,600 | km/h | 3,8 | |
| for a track 750,900 | 3,8 | ||
| 3. | Railway motor power in hours mode |
kWt |
4,0 |
| 4. | Railway motor type | МТ-2 | |
| 5. | Clearance, minimum | mm | 35 |
| 6. | Power capacity of accumulator battery | kWt/h | 19-60 |
| 7. | Accumulator battery type | TNZhSh, PzS | |
| 8. | Rigid wheelset | mm | 650 |
| 9. | Nominal track rail gage | mm | 550-900 |
| 10. | Overall dimensions: | ||
| length over buffers | mm | 2130 | |
| width for a track 550, 575,600 | 900 | ||
| width for a track 750,900 | 1050 | ||
| height | 1360 | ||
| 11. | Nominal wheel diameter on tread | mm | 480 |
| 12. | Mass | t | 2,0 |
