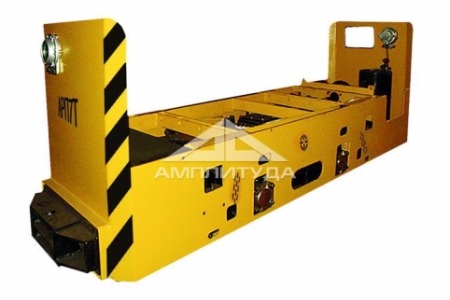

АRP7Т accumulator locomotive
Price
On request
Description
It is designed for transportation of rolling equipment across underground workings of mines and pits with a gradient up to0.005 and track bending radius minimum8 m, where the current safety regulations permit operation of accumulator locomotives. The locomotive is manufactured according to the Technical Specifications of Ukraine 35.2-25103132-020:2010
Technical characteristics
| Serial no. | Designation of basic parameters and dimensions | Unit of measure | Value |
|---|---|---|---|
| 1. | Traction effort in hours mode: | ||
| -for a track 600 | kN | 10 | |
| -for a track 900 | 10 | ||
| 2. | Speed in hours mode: | ||
| -for a track 600 | km/h | 7,5 | |
| -for a track 900 | 8,1 | ||
| 3. | Railway electric motor power in hours mode | kWt | 20(2×10) |
| 4. | Accumulator battery power capacity | kWt/ч | 58-75 |
| 5. | Accumulator battery type | TNZHSH,PzS | |
| 6. | Rigid wheelset | mm | 1200 |
| 7. | Nominal track rail gage | mm | 600, 900 |
| 8. | Overall dimensions: | ||
| -length over buffers | mm | 4200 | |
| -track gage 600 | 1050 | ||
| -track gage 900 | 1350 | ||
| -height | 1450 | ||
| 9. | Nominal wheel diameter on tread | mm | 680 |
| 10. | Mass | kg | 7000 |
| 11. | Sand system | manual mechanic | |
| 12. | Electric equipment version | “RV” | |
| 13. | Accumulator battery version | “RP” | |
.
