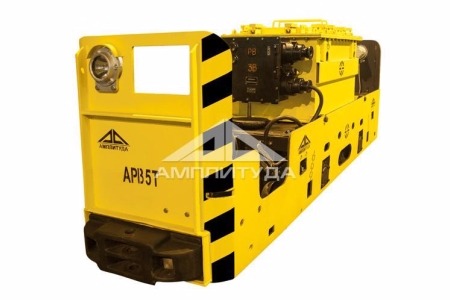

АRV5T accumulator locomotive
It is designed for transportation of rolling equipment across underground workings of mines and pits with a gradient up to 0.005 and track bending radius minimum 8 m, where the current safety regulations permit operation of accumulator locomotives. The locomotive is manufactured according to the Technical Specifications of Ukraine 35.2-25103132-020:2010
Technical characteristics
| Serial no. | Designation of basic parameters and dimensions |
Unit of measure |
Value |
|---|---|---|---|
|
1. |
Traction effort in hours mode: | ||
| - for a track 600 |
kN |
9 |
|
| - for a track 900 |
9 |
||
|
2. |
Speed in hours mode: | ||
| -for a track 600 |
km/h |
6,9 |
|
| -for a track 900 |
7,8 |
||
|
3. |
Railway electric motor power in hours mode |
kWt |
20(2×10) |
|
4. |
Accumulator battery power capacity |
kWt/h |
40-76 |
|
5. |
Accumulator battery type |
TNZHSH,PzS |
|
|
6. |
Rigid wheelset |
mm |
1000 |
|
7. |
Nominal track rail gage |
mm |
550, 900 |
|
8. |
Overall dimensions: | ||
| -length over buffers |
mm |
3800 |
|
| -track gage 600 |
1050 |
||
| -track gage 900 |
1350 |
||
| -height |
1330 |
||
|
9. |
Nominal wheel diameter on tread |
mm |
540 |
|
10. |
Mass |
kg |
5900 |
|
11. |
Sand system |
manual mechanical |
|
|
12. |
Electric equipment version |
“RV” |
|
|
13. |
Accumulator battery version |
“RV” |
|
