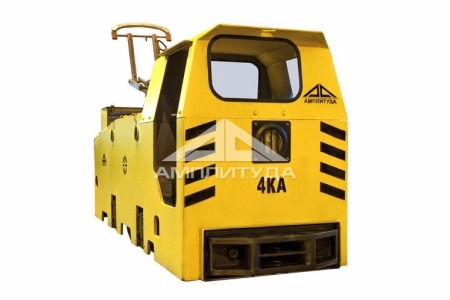

4KA trolley locomotives

Price On request

Description

It is designed for transportation of rolling equipment across underground workings of mines and pits with a gradient up to0.005 and track bending radius minimum12 m, where the current safety regulations permit operation of trolley locomotives. Technical Specifications ofUkraine35.2-25103132-007:2006.

Technical characteristics

Serial no.	Designation of basic parameters and dimensions	Unit of measure	Value
1.	Adhesive weight	kg	4000
2.	Nominal voltage at collector bow	V	250⁺⁷⁵/_-50
3.	Speed in hours mode	km/h	5,5
4.	Railway electric motor power in hours mode	kWt	24
5.	Traction effort in hours mode	kN	13
6.	Rail gage	mm	600,750
7.	Length over buffers	mm	3300
8.	Width over projected parts:
	-for a track 600	mm	1050
	-for a track 750		1200
	-for a track 900		1350
9.	Height over operator’s cabin	mm	1515
10.	Rigid wheelset	mm	900
11.	Clearance (ground clearance)	mm	100
12.	Binding band outside diameter	mm	540
