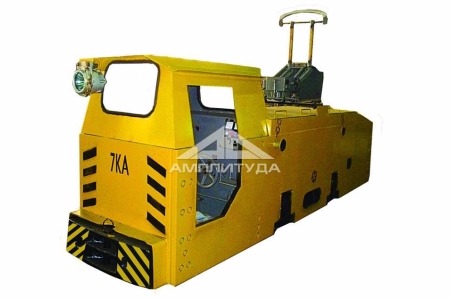

7KA trolley locomotive

Price On request

Description

It is designed for transportation of rolling equipment across underground workings of mines and pits with a gradient up to0.005 and track bending radius minimum12 m, where the current safety regulations permit operation of trolley locomotives. Technical Specifications ofUkraine35.2-25103132-007:2006.

Technical characteristics

Serial no.	Designation of basic parameters and dimensions	Unit of measure	Value
1.	Adhesive weight	kg	7900
2.	Nominal voltage at collector bow	V	250⁺⁷⁵/_-50
3.	Speed in hours mode	km/h	12,2
4.	Railway electric motor power in hours mode	kWt	2х33
5.	Traction effort in hours mode	kN	18
6.	Rail gage	mm	600/750,900
7.	Length over buffers	mm	4600
8.	Width over projected parts:
	-for a track 600	mm	1050
	-for a track 750		1350
	-for a track 900		1350
9.	Height over operator’s cabin	mm	1550
10.	Rigid wheelset	mm	1200
11.	Clearance (ground clearance)	mm	115
12.	Binding band outside diameter	mm	680
